PA-924
Kod EAN: 4007754254280
Mono PA mixing amplifier 1 x 240 W 4 balanced microphone inputs and line inputs with selectable priority 4 stereo line inputs Speaker outputs via screw terminal contacts Balanced line output Record output Insert facility, e.g. for effect units, equa...
828,00 € brutto
(inkl. 20% DPH)
690,00 € netto

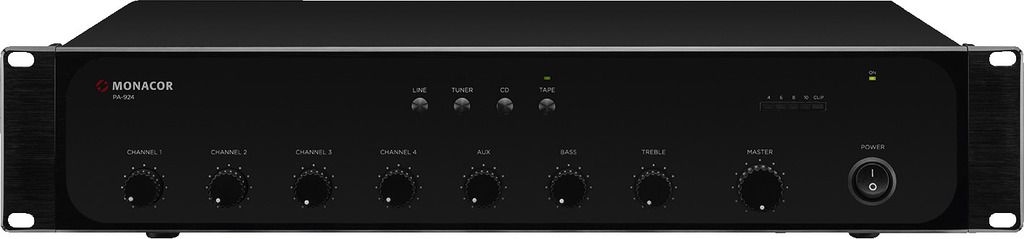

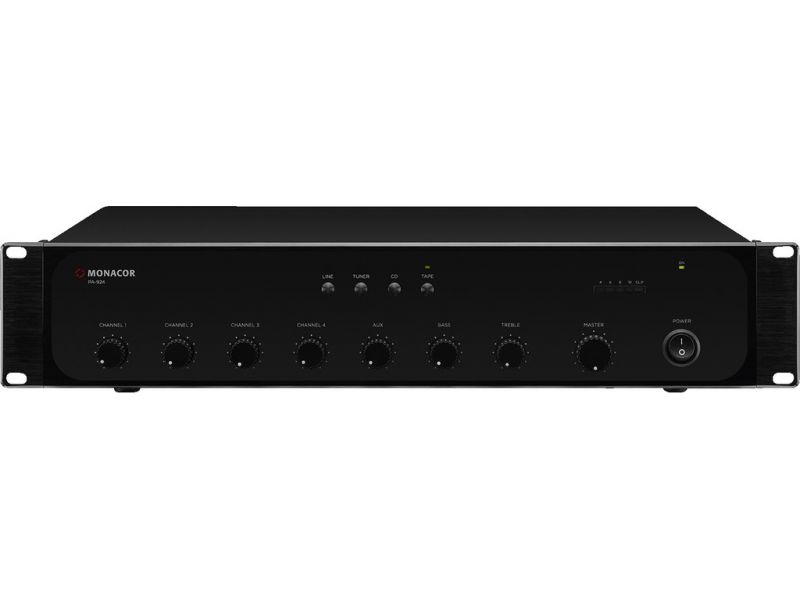

PA-924
Mono PA mixing amplifier
- 1 x 240 W
- 4 balanced microphone inputs and line inputs with selectable priority
- 4 stereo line inputs
- Speaker outputs via screw terminal contacts
- Balanced line output
- Record output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- 2-tone or 4-tone chime, can be activated externally
- Input level control and output level control
- 2-way tone control for the output
- Switchable 48 V phantom power for microphone inputs
- Temperature-controlled fan
- Mains operation or 24 V emergency power operation
- Removable mounting brackets
Parametry
| Peak output power | 340 W |
| Power rating | 240 W |
| Channels | 5 |
| Inputs | 2.5-100 mV (mic),350 mV (line) |
| Frequency range | 50-16,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 75 dB |
| THD | < 0.1% |
| Phantom power | 48 V |
| Power supply | ˜ 230 V/50 Hz/640 VA, DC 24 V/18 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 640 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 18 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 95 mm |
| Depth | 390 mm |
| Rack units, RU | 2 |
| Weight | 13 kg |
| Connections | 4 x XLR (mic), 4 x RCA L/R (line), 1 x XLR (line out), 1 x RCA L/R (line out), screw contacts (speakers) |
| Packing dimensions (W x H x L) | 0.54 x 0.195 x 0.505 m |
| Gross weight | 16.12 kg |
| Net weight | 13.21 kg |
