QB200-4W
Kod EAN: 4043106037316
Nástenný hifi reproduktor, 4Ohm

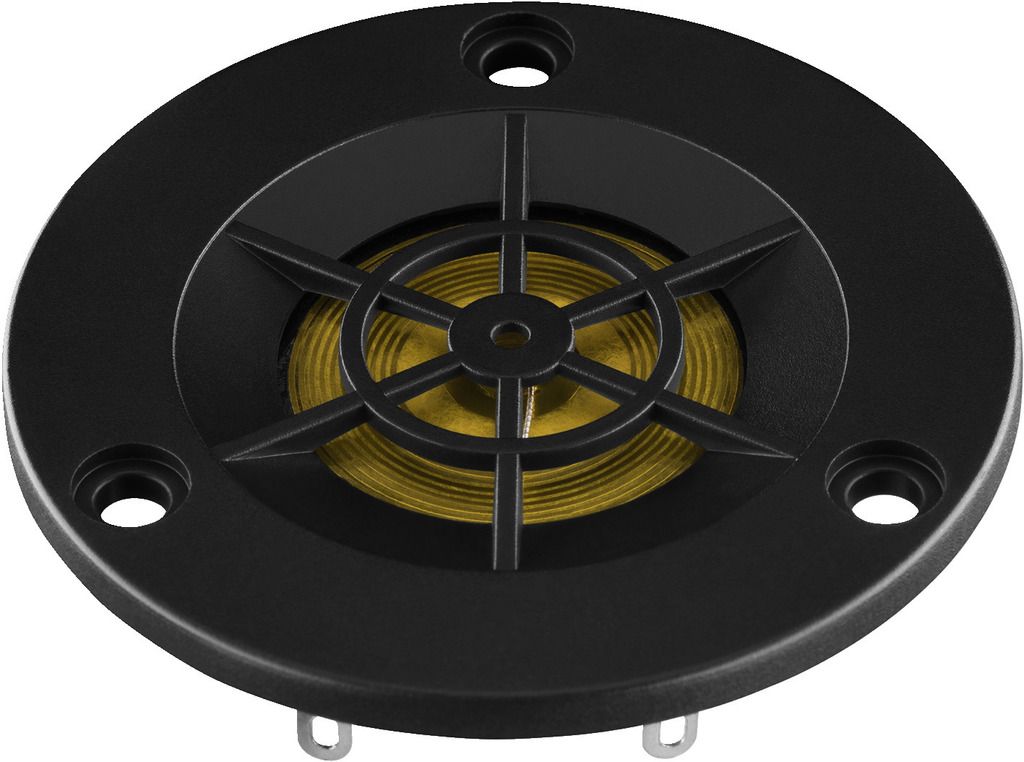

Hi-fi ribbon tweeter, 10 W, 4 Ω Magnetostatic tweeter of compact size Neodymium magnet system Fine and brilliant reproduction of the high frequencies Round cone with Kapton and aluminium film For use from 5,000 Hz on Plastic sound diffuser panel (fro...
37,00 € brutto
(inkl. 20% DPH)
30,83 € netto
Impedance (Z) | 4 Ω |
Frequency range | 5,000-40,000 Hz |
Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 5,000 Hz |
Power rating (RMS) | 10 W |
Peak music power output (MAX) | 20 W |
SPL | 90 dB/W/m |
DC resistance (Re) | 3.5 Ω |

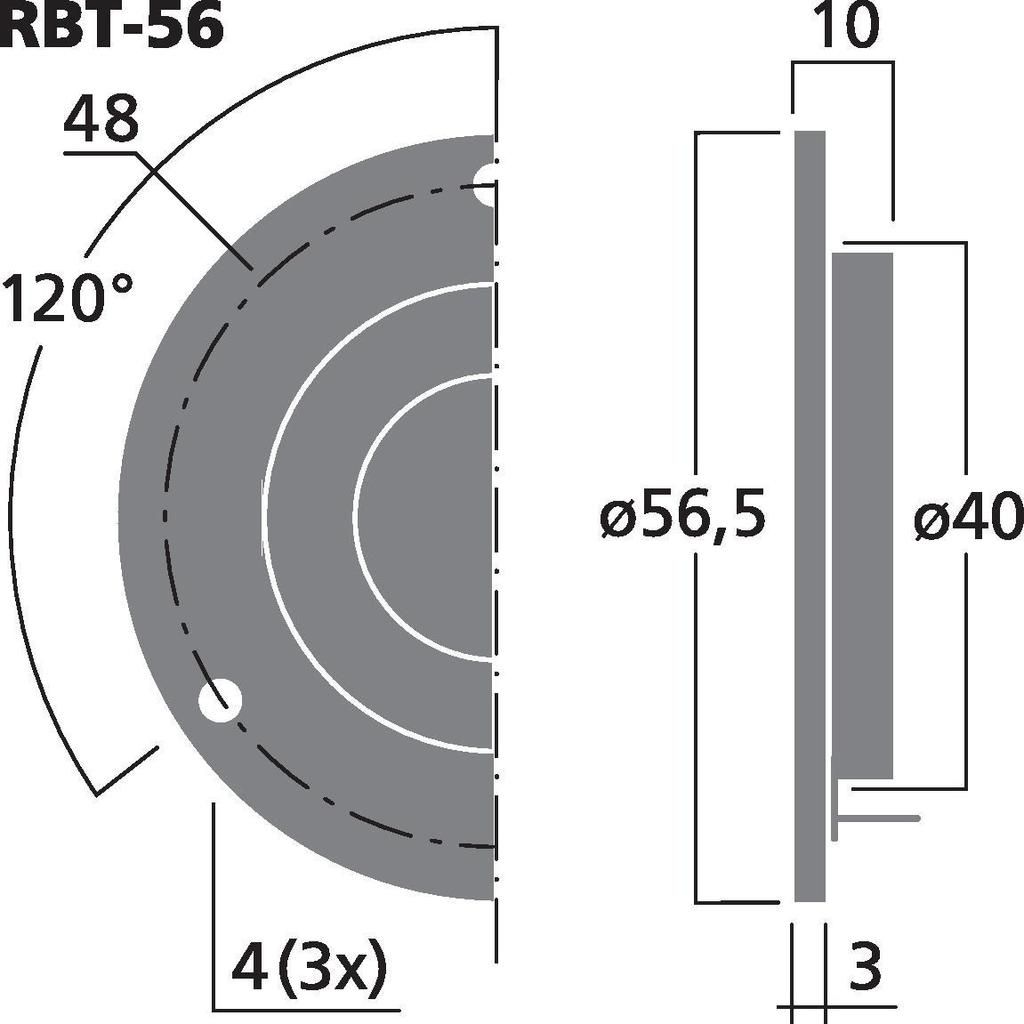

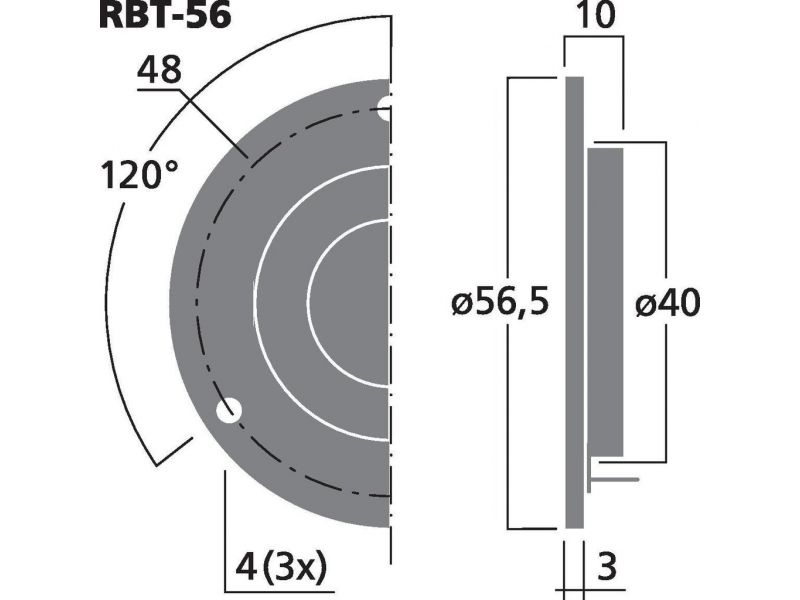

Mounting cutout | Ø 40 mm |
Mounting depth | 10 mm |
Mounting hole diameter | Ø 48 mm |
Dimensions | 56.5 mm |
Outside diameter | Ø 56.5 mm |
Width | Ø 56.5 mm |
Depth | 10 mm |
Colour | black |
Admiss. ambient temp. | 0-40 °C |
Weight | 0.035 kg |
Packing unit | 1 |
Packing dimensions (W x H x L) | 0.065 x 0.015 x 0.075 m |
Gross weight | 0.045 kg |
Net weight | 0.035 kg |
