SAM-300D

Kod EAN: 4007754228229

Active Subwoofer Modules for the Digital Age Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a h...

víc

279,00 € brutto

(inkl. 20% DPH)
232,50 € netto

Staň se partnerem
Kup teď


SAM-300D

Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

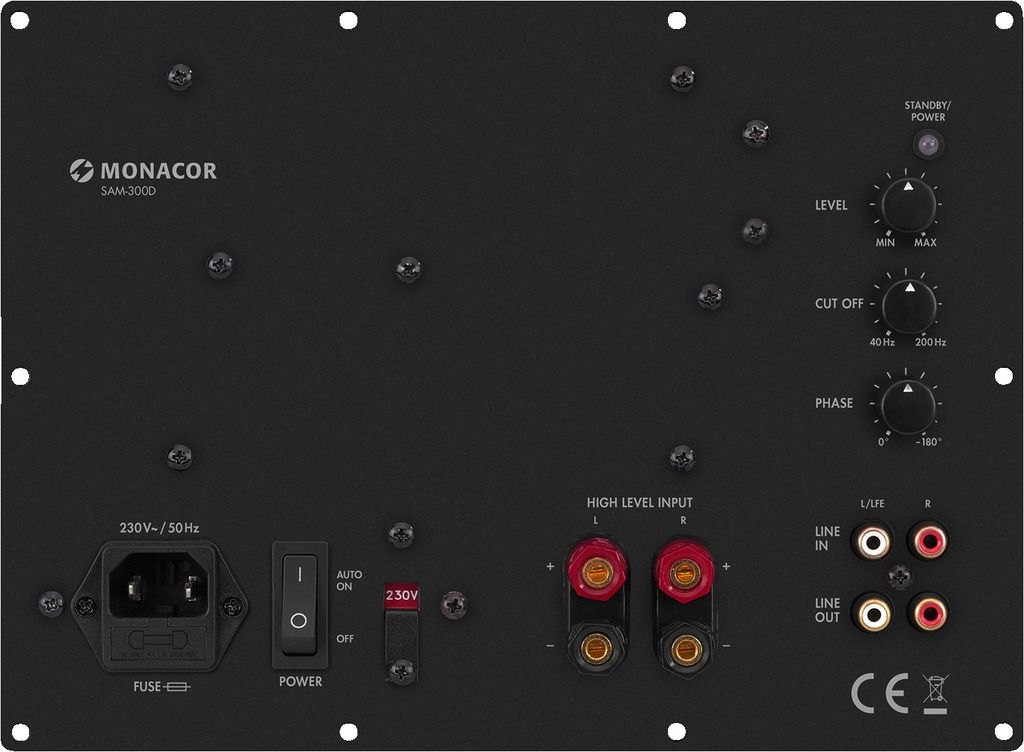

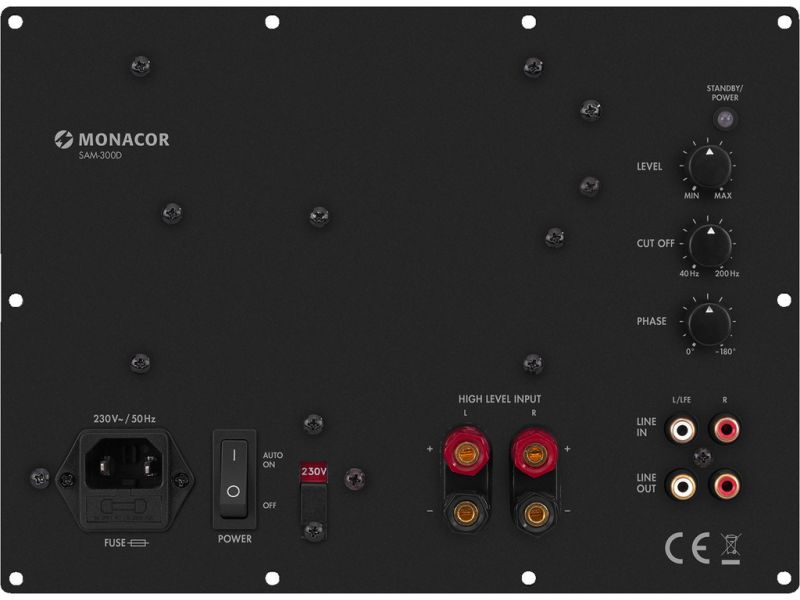

Class D active subwoofer module, 300 W at 4 Ω

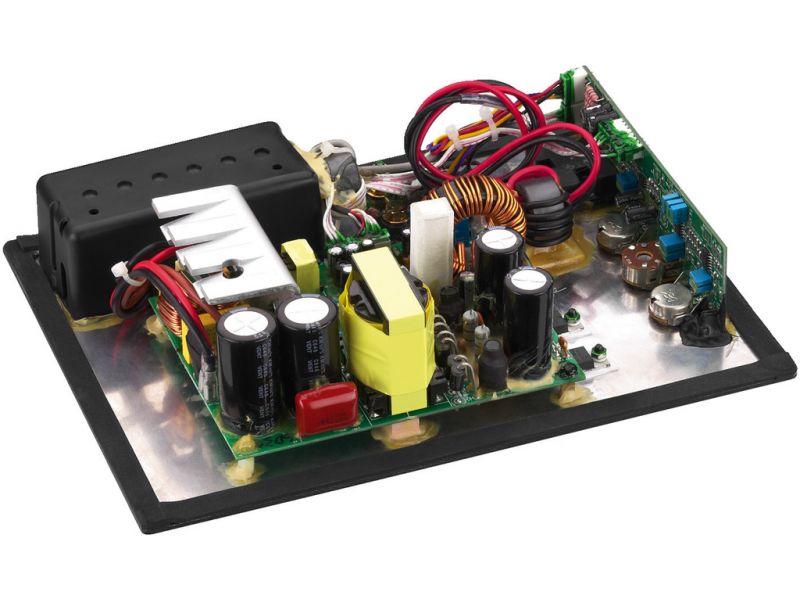

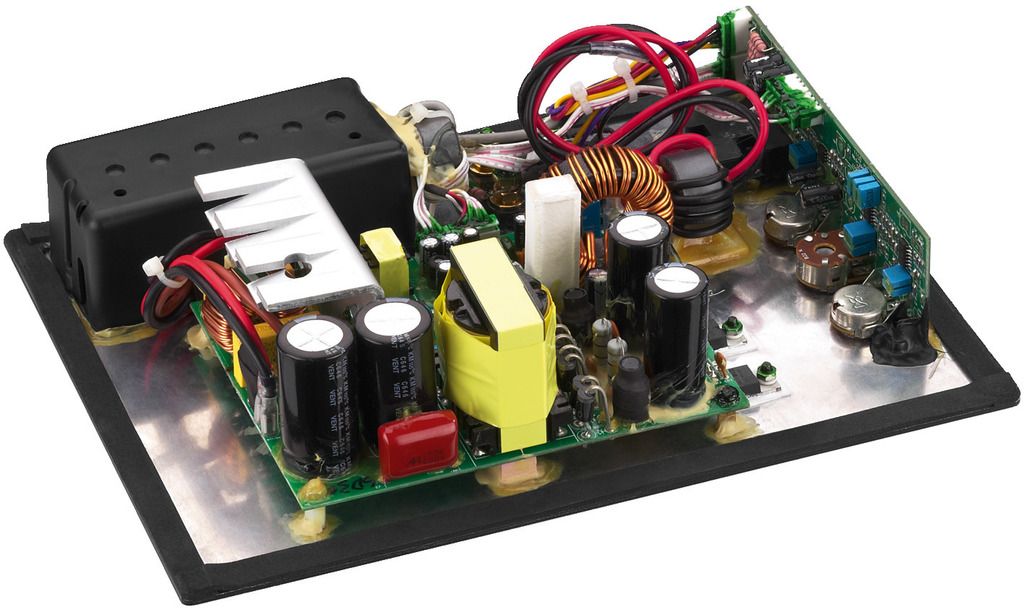

  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High-level inputs for parallel connection to the speaker cables
  • High power reserves

Parametry

Peak output power 420 W
Power rating 300 W
Power rating at 4 Ω 300 W
Power rating at 8 Ω 150 W
Channels 1
Inputs max. 7 V/22 kΩ
Attenuation factor 24.4
Frequency range 20 Hz - (var. 40-200 Hz)
Crossover network 18 dB/oct.
S/N ratio > 70 dB
THD < 0.1%
Power supply ˜ 230 V/50 Hz/440 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 440 VA
Power consumption, standby < 0.5 W
Admiss. ambient temp. 0-40 °C

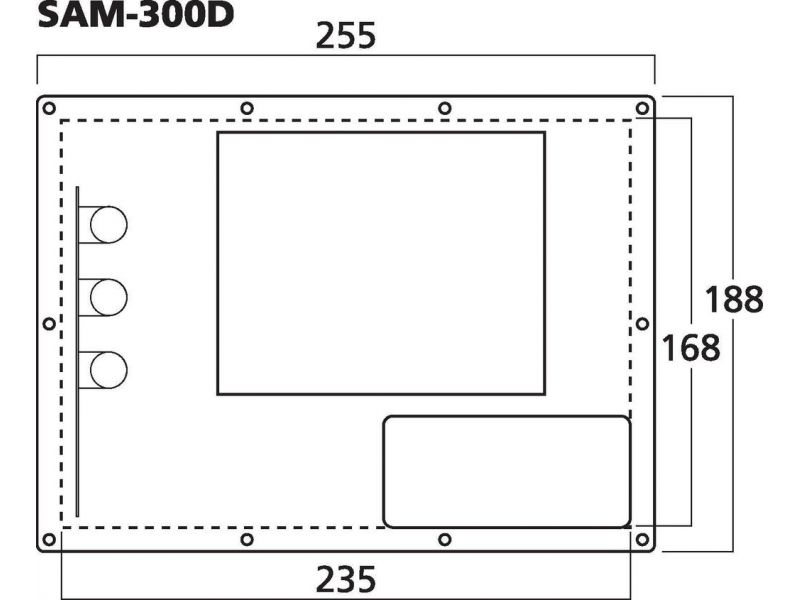

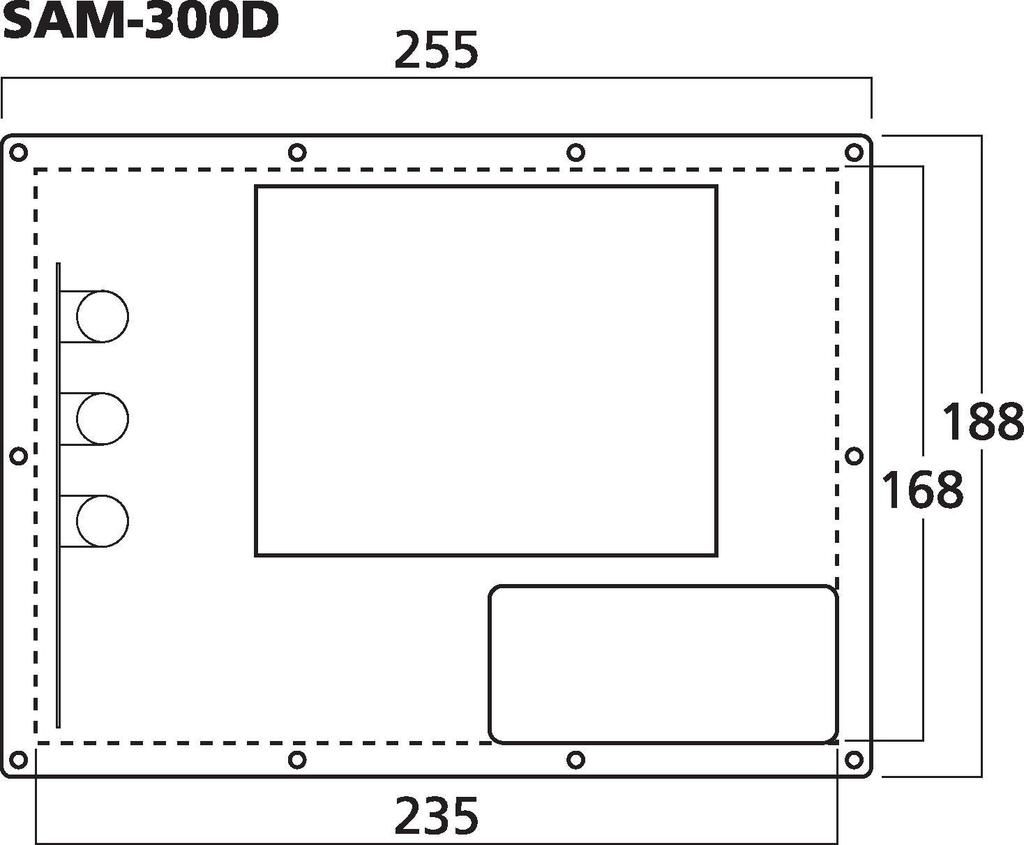

Width 188 mm
Height 255 mm
Depth 90 mm
Weight 1.3 kg
Connections 1 x RCA (line in), 1 x speaker terminal (high power in), 1 x RCA (line out)
Packing dimensions (W x H x L) 0.19 x 0.09 x 0.255 m
Gross weight 1.722 kg
Net weight 1.304 kg

Na stáhnutí

Produktová karta SAM-300D konformitaetserklaerung-ukca konformitaetserklaerung-ce Návod na obsluhu
