BS-30
Kod EAN: 4007754430059
Ceiling cabinet PA system for mounting on or suspending from ceilings or ceiling constructions High-quality transmission of speech and music 100 V transmission technology via audio transformer with 3-step power taps 30/15/7.5 W 4 x 2-way speaker wi...

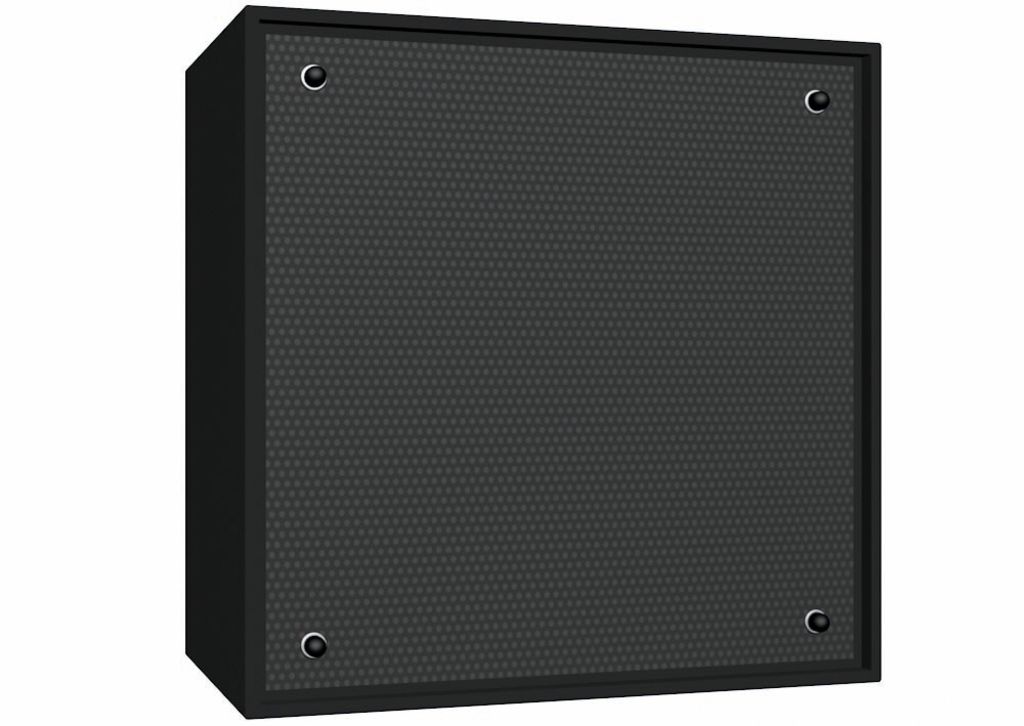

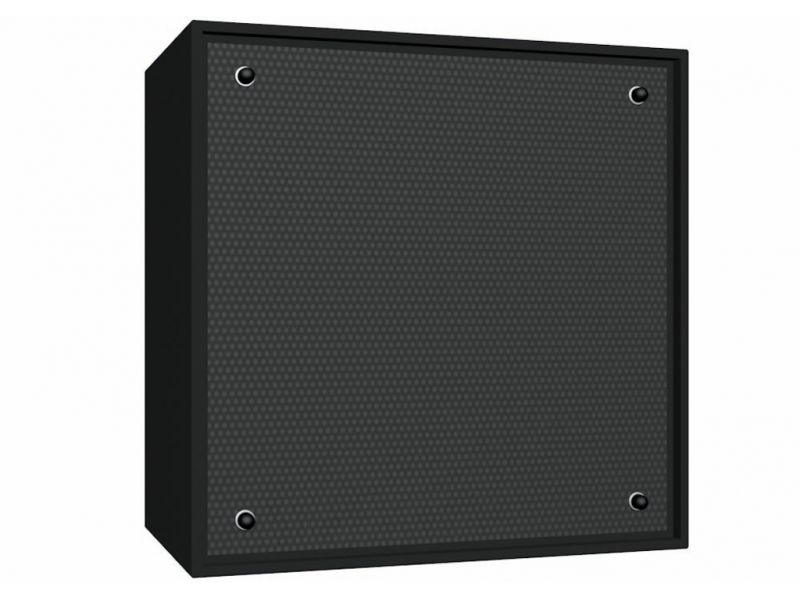

BS-30
Ceiling cabinet PA system
for mounting on or suspending from ceilings or ceiling constructions
- High-quality transmission of speech and music
- 100 V transmission technology via audio transformer with 3-step power taps 30/15/7.5 W
- 4 x 2-way speaker with additional high-range horn
- Excellent efficiency, superb sound characteristics and optimised radiation properties due to 4 speakers so that it is possible to achieve a defined directionality even within the critical mid-range
- Particularly suited for ceiling PA in surroundings with a long reverberation time, high ceilings and a high ambient noise level
- Black laquered MDF cabinet with mounting eyelets for suspension by steel cables
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 30 W |
| Power rating (RMS) | 30/15/7.5 W |
| Frequency range | 80-22,000 Hz |
| System | 2-way |
| Number of speakers | 4 |
| SPL | 102 dB/W/m |
| Max. rated SPL | 117 dB |
| Radiation angle/beam angle | H85°/V85° (1 kHz) H60°/V60° (2 kHz) H50°/V50° (4 kHz) |
| Radiation angle, horizontal | 85° (1 kHz) 60° (2 kHz) 50° (4 kHz) |
| Radiation angle, vertical | 85° (1 kHz) 60° (2 kHz) 50° (4 kHz) |
| Housing material | MDF |
| Colour | Black, RAL 9005 |
| Mounting device | Mounting lugs |
| Dimensions | 500 x 500 x 300 mm |
| Width | 500 mm |
| Height | 500 mm |
| Depth | 300 mm |
| Weight | 21 kg |
| Packaging dimensions (W x H x L) | 0.6 x 0.4 x 0.45 m |
| Gross weight | 22 kg |
| Net weight | 21 kg |
