CS-W4C/6
Kod EAN: 4007754275575
4-channel diversity UHF PLL wideband receiver for conference system Bandwidth: 36 MHz 6 groups, each with up to 22 compatible preset channels 1,441 selectable individual frequencies RF output and mains voltage output for easily cascading up to 10 x C...

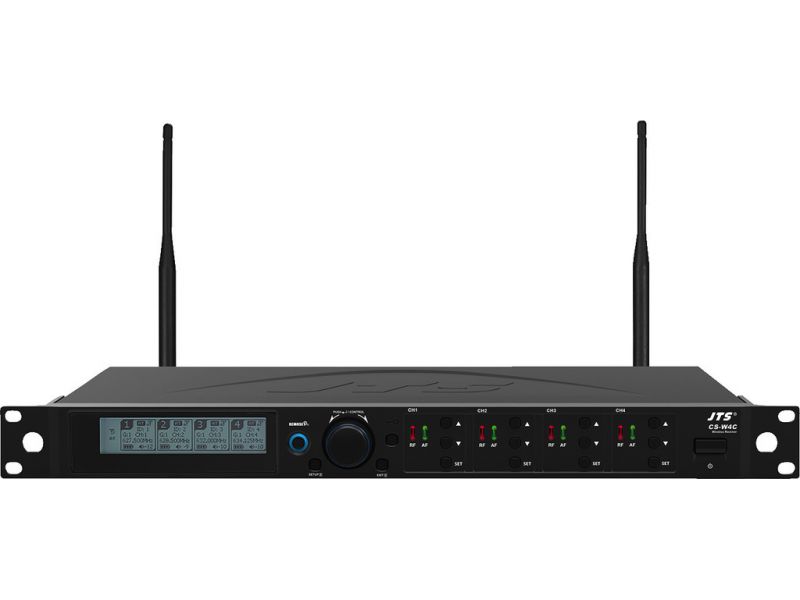

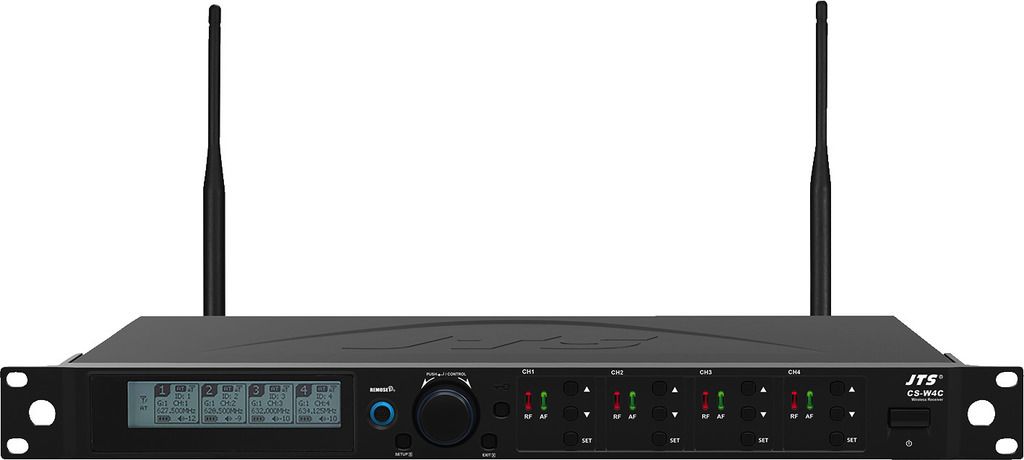

CS-W4C/6
4-channel diversity UHF PLL wideband receiver for conference system
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels
- 1,441 selectable individual frequencies
- RF output and mains voltage output for easily cascading up to 10 x CS-W4C/6 receiver without additional splitter
- REMOSET technology for receiver/transmitter synchronisation
- Removable antennas (BNC connection)
- Auto-scan function
- Pilot tone squelch and noise mute
- Volume settings to be selected for each channel
- Conference-specific priority settings
- Conference modes: override, priority and open mode
- Backlit display for indicating the status, e.g. for group/channel, frequency, battery, antenna A/B
- LED for indicating RF level and AF level
- Display for indicating battery status of the transmitters
- Power supply for optional antenna booster
- Link connections
- Trigger output
- XLR output per channel (bal.)
- XLR output (bal.) and 6.3 mm output for mixed signal
- Outputs mic/line, switchable
- 482 mm (19") rack installation, 1 RU
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Parametry
| Description | receiver unit |
| Rozsah nosné frekvence | 626-662 MHz |
| Audio frequency range | 60-16,000 Hz |
| Kanály | 4 |
| THD | < 0.6% |
| Dynamický rozsah | > 105 dB(A) |
| Prípustná teplota okolia | 0-40 °C |
| Přijímač zvukového signálu | 630 mV/600 Ω XLR (line), 63 mV/600 Ω XLR (mic), 316 mV/600 Ω jack |
| Power supply receiver | ˜ 110-240 V/50-60 Hz/20 VA |
| Width receiver | 485 mm |
| Height receiver | 45 mm |
| Depth receiver | 260 mm |
| Weight receiver | 2.4 kg |
| Connections receiver | 5 x XLR, bal., 1 x 6.3 mm jack, unbal. |
