R-20U

Kod EAN: 4007754426564

Wideband directional antenna Improving signal reception for wireless UHF microphone systems in the frequency range: 470-600 MHz ABS housing for UV resistance Ideally suited for directional reception or transmission indoors or outdoors Can be combined...

víc

Staň se partnerem
Kup teď

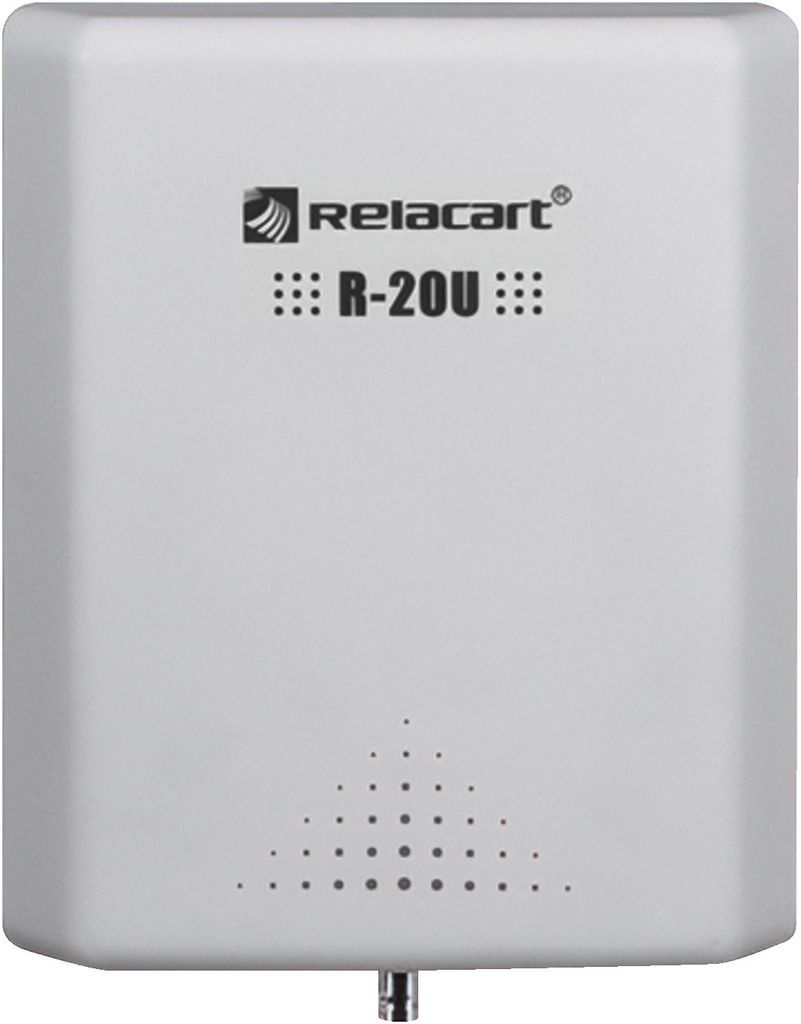

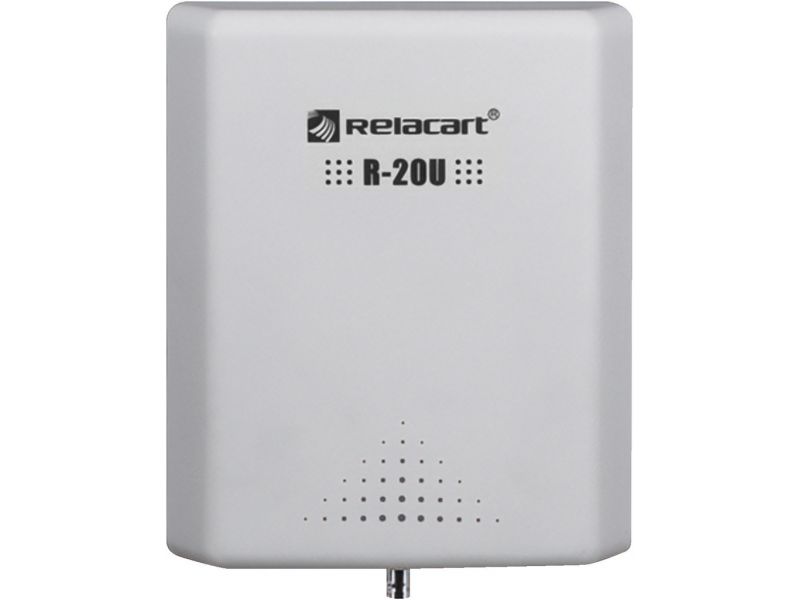

R-20U

Wideband directional antenna
  • Improving signal reception for wireless UHF microphone systems in the frequency range: 470-600 MHz
  • ABS housing for UV resistance
  • Ideally suited for directional reception or transmission indoors or outdoors
  • Can be combined with antenna booster R-20A
  • BNC connections
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametry

Frequency range 470-600 MHz
Aperture angle H: 80°/V: 60°
Active/passive passive
Antenna gain 7 dB
Impedance level 50 Ω
Dimensions 180 x 210 x 44 mm
Weight 300 g
Connection BNC

Na stáhnutí

Produktová karta R-20U Návod na obsluhu konformitaetserklaerung-ce konformitaetserklaerung-ukca
