RDA10
Kod EAN: 4007754426694
Active 2-way flush-mount ceiling speaker, with integrated Dante® module. Full range coaxial ceiling speaker Equipped with standard flex terminals Frameless construction and slim design Removable magnetic, lacquered grille for seamlessly covering th...

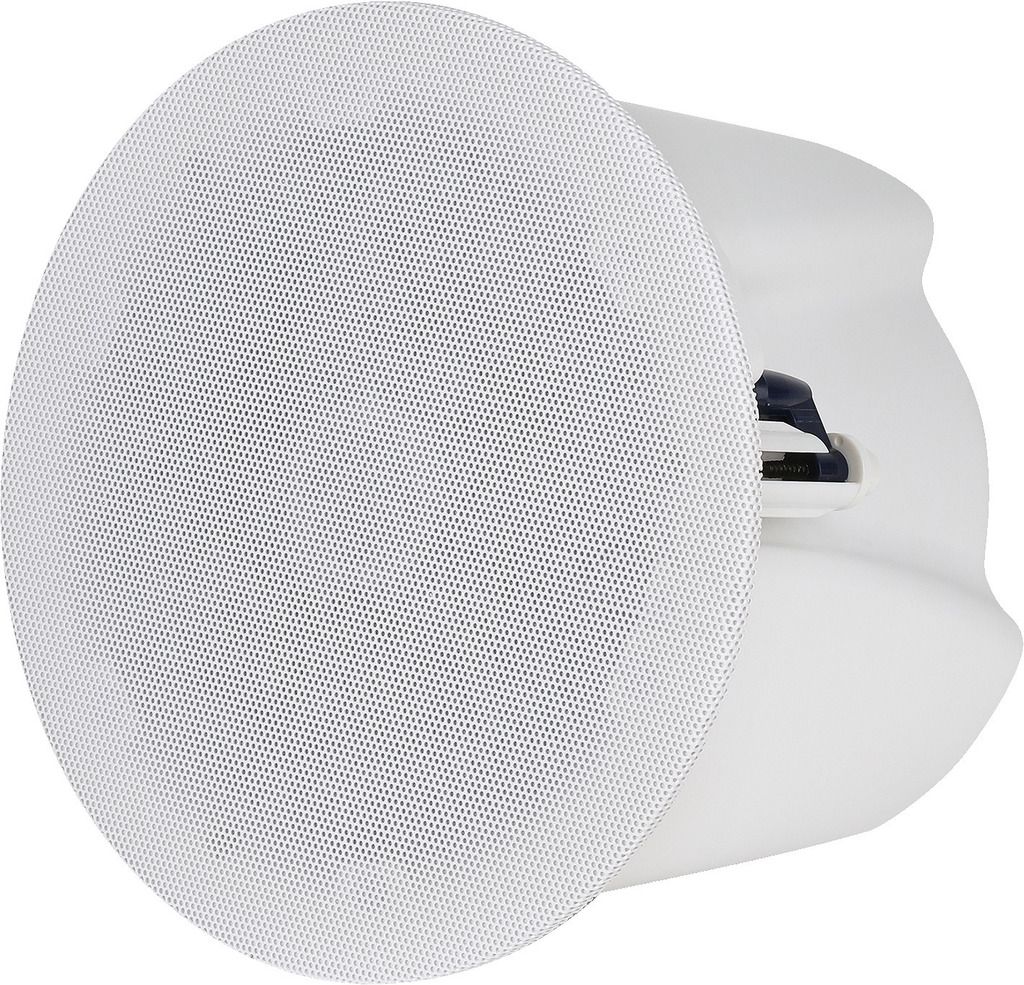

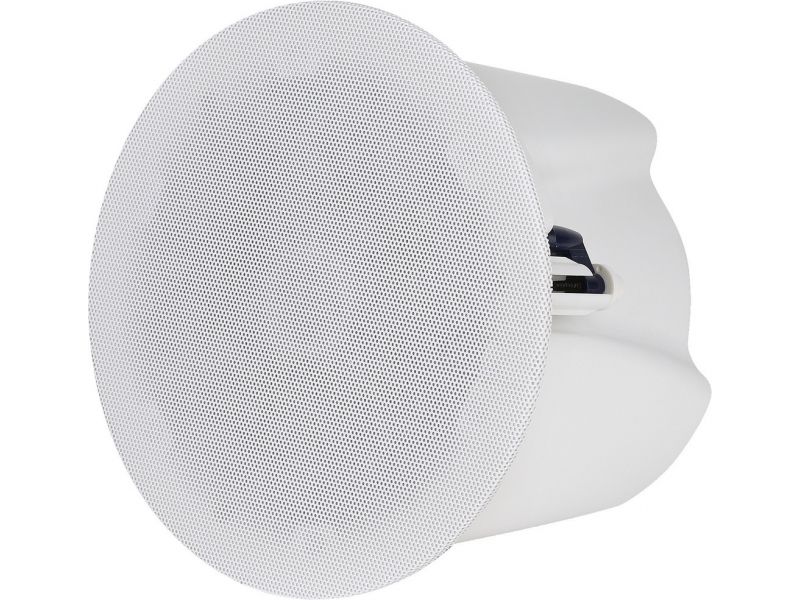

RDA10
Active 2-way flush-mount ceiling speaker,
with integrated Dante® module.
- Full range coaxial ceiling speaker
- Equipped with standard flex terminals
- Frameless construction and slim design

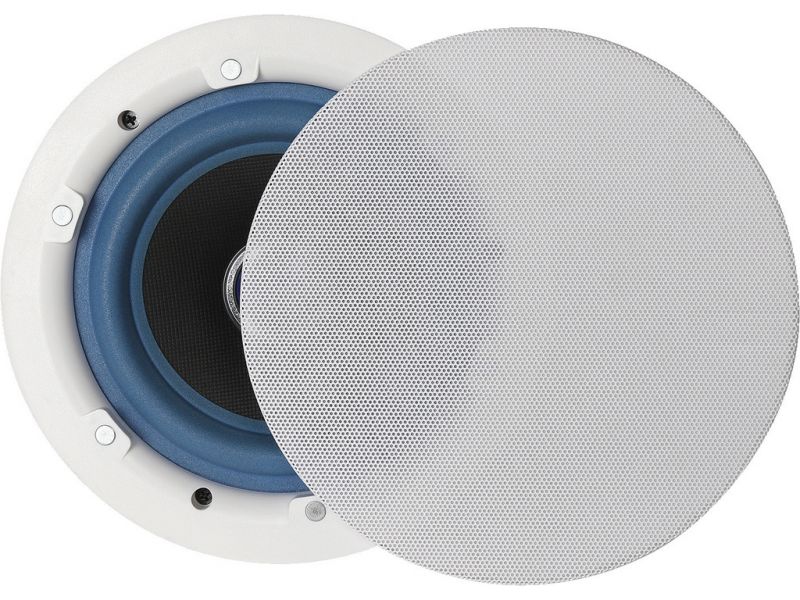

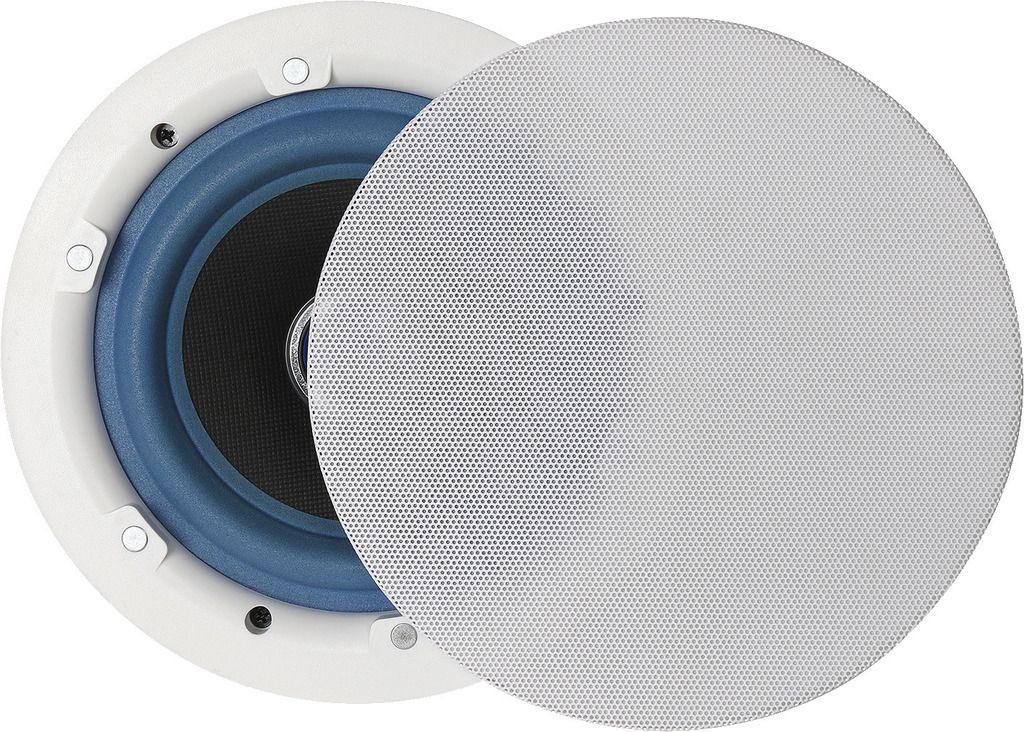

- Removable magnetic, lacquered grille for seamlessly covering the entire speaker

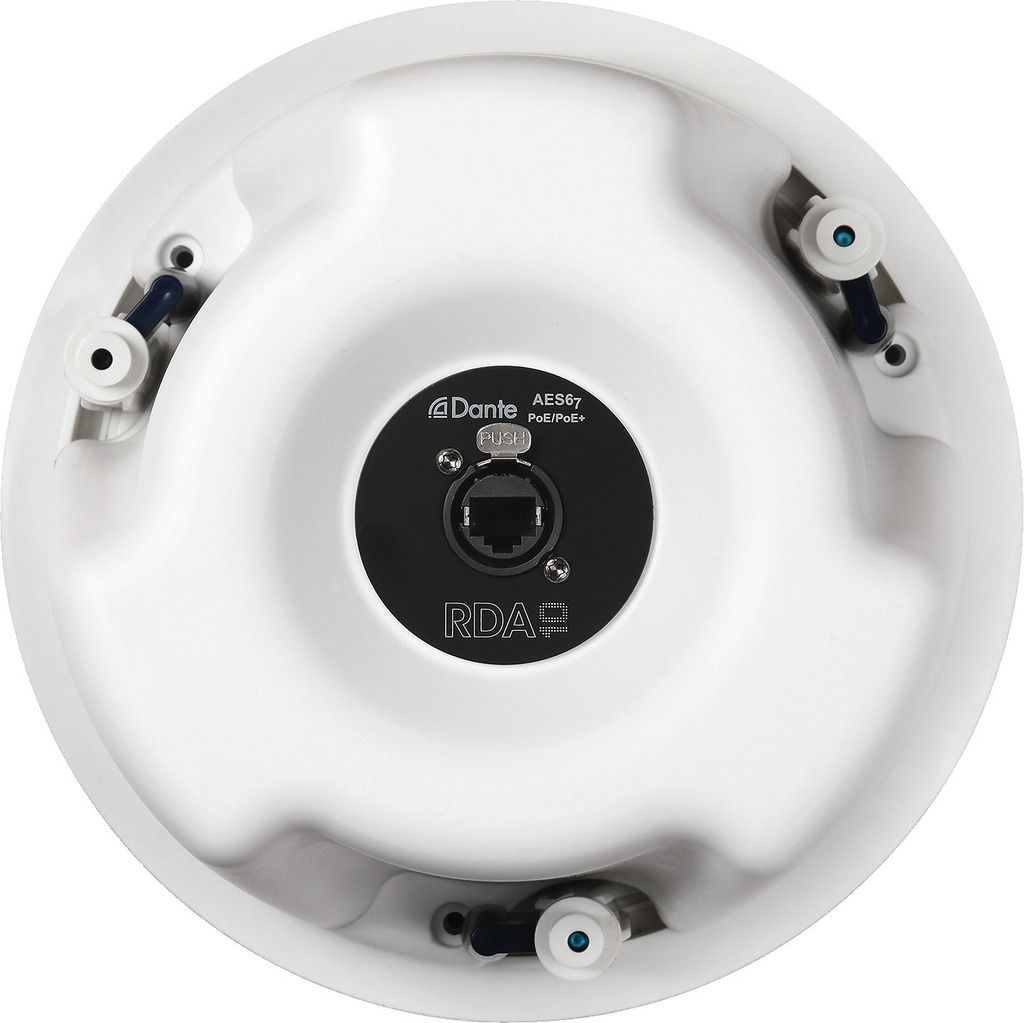

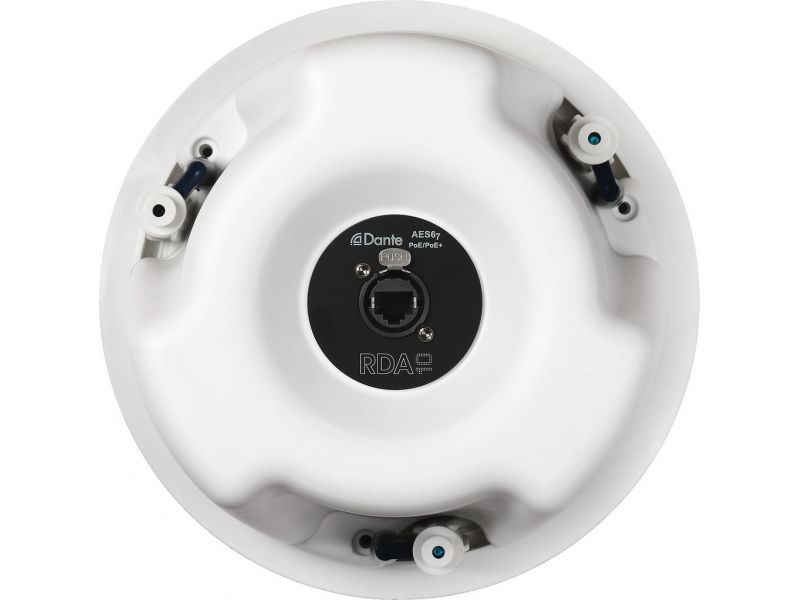

- Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
- Output power: 10 W (PoE), 20 W (PoE+)
- Compatible with all Dante®/AES67 audio network products
- Transmission of data signals via RJ45 port
- Supports Relacart speaker management software for easy setup and remote management
System requirements Dante®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Active/passive | active |
| Transmission technology | Dante ® |
| Total output power | 30 W |
| Power rating (RMS) | 10 W (PoE), 20 W (PoE+) |
| Frequency range | 85-17,000 Hz |
| Input signal | Dante® |
| System | 2-way |
| Bass speaker | 1 x 16 cm |
| Tweeter | 1 x 2.5 cm |
| Number of speakers | 1 |
| Speaker size | 16 cm (6") |
| SPL | 90 dB/W/m |
| Max. rated SPL | 103 dB |
| Radiation angle/beam angle | 90° |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 90° |
| Housing material | plastic frame, protective metal grille |
| Colour | white |
| Mounting device | ceiling suspension |
| Power supply | 37-57 V PoE/PoE+ via RJ45 |
| Dimensions | Ø 210 mm x 150 mm |
| Width | Ø 210 mm |
| Height | Ø 210 mm |
| Depth | 150 mm |
| Weight | 1.5 kg |
| Inputs | RJ45 |
| Other features | integr. DSP for tone control via software |
| Packaging dimensions (W x H x L) | 0.232 x 0.178 x 0.232 m |
| Gross weight | 1.89 kg |
| Net weight | 1.5 kg |
