TCB-22
Kod EAN: 4007754277005
2-channel audio balancing transformer An unbalanced audio signal is passively converted (without power supply) into a balanced signal by means of an audio transformer (doubled in the device). In addition, a DIP switch can be used to generate a mono...
81,20 € brutto
(inkl. 23% DPH)
66,02 € netto
TCB-22
2-channel audio balancing transformer
An unbalanced audio signal is passively converted (without power supply) into a balanced signal by means of an audio transformer (doubled in the device).
In addition, a DIP switch can be used to generate a mono signal (lossless, because it is not coupled via resistors) from two input signals (stereo).
The device can also be operated in the opposite direction, i.e. unbalanced signals can be generated from balanced signals. The only thing required is the XLR/XLR adapter NA-3FF which is available at option.
In addition, a DIP switch can be used to generate a mono signal (lossless, because it is not coupled via resistors) from two input signals (stereo).
The device can also be operated in the opposite direction, i.e. unbalanced signals can be generated from balanced signals. The only thing required is the XLR/XLR adapter NA-3FF which is available at option.

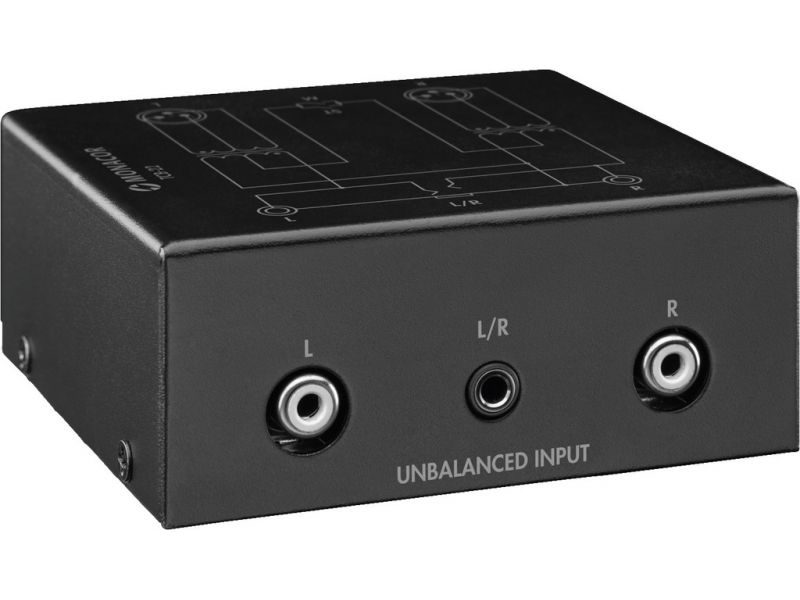

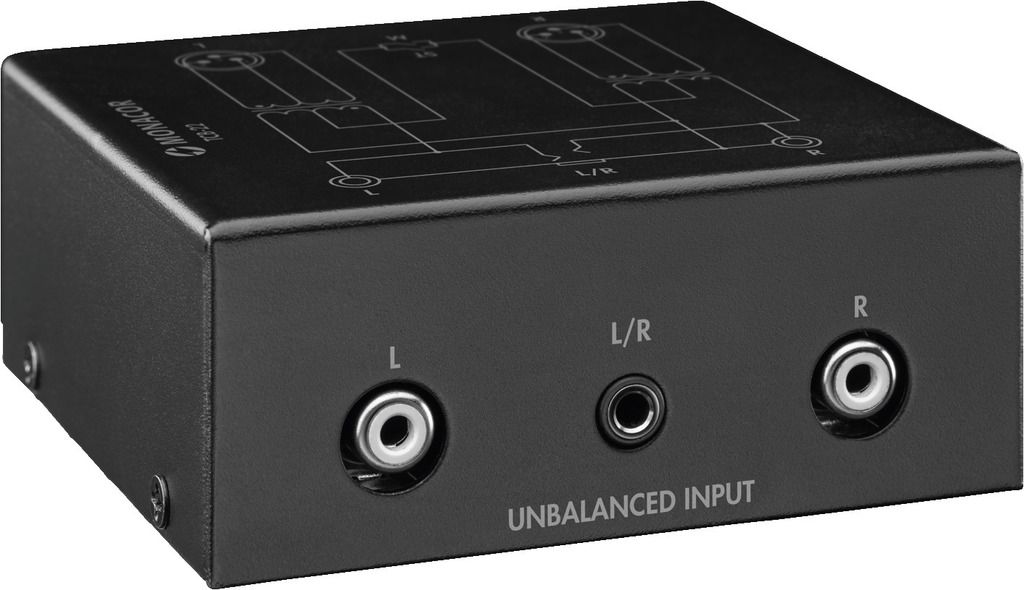

- RCA and 3.5 mm stereo inputs

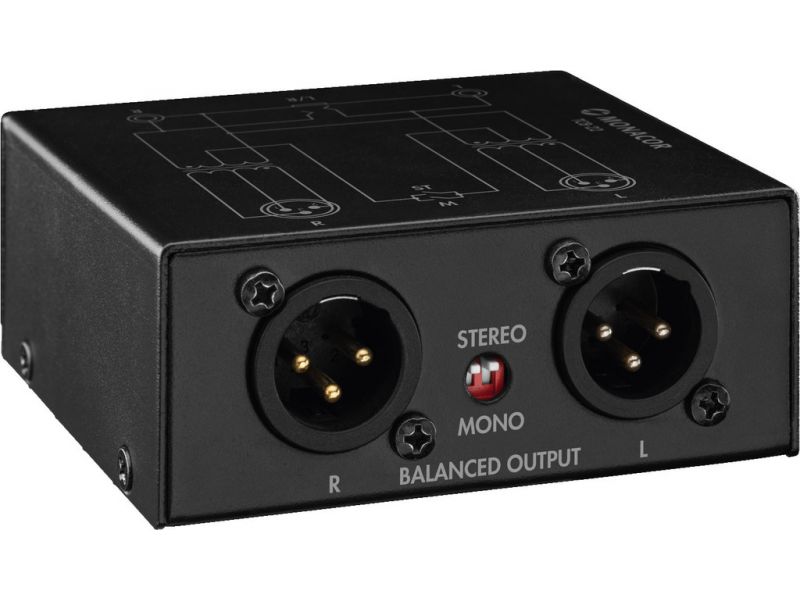

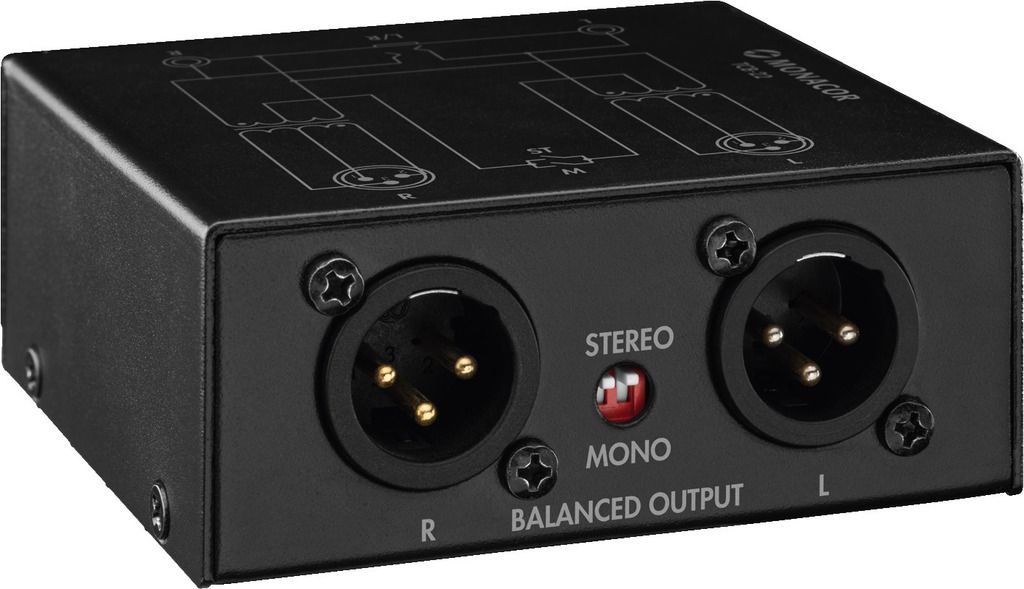

- 3-pole XLR outputs
- 2-pole DIP switches for switching as a stereo/mono converter
- Black metal housing
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | 2-channel audio balancing transformer |
| Frequency range | 6-25,000 Hz |
| Input signal | 15 V max. |
| Input impedance | 5.3 kΩ/1 kHz |
| Output impedance | 5.4 kΩ/1 kHz |
| Transmission ratio | 1:1 |
| Admiss. ambient temp. | -20-+50 °C |
| Dimensions | 88 x 36 x 83 mm |
| Weight | 318 g |
| Inputs | 2 x RCA, 1 x 3.5 mm stereo jack, unbal. |
| Outputs | 2 x 3-pole XLR, bal. |
