TR-15-T
Kod EAN: 4007754430110
Weatherproof horn speaker 100 V transmission technology 100 V transformer with 15/7.5/3.75 W power taps Integrated high-pass filter for sound and stability optimisation Suitable for use in road tunnels and poorly ventilated car parks Resistant to exh...
132,88 € brutto
(inkl. 23% DPH)
108,03 € netto

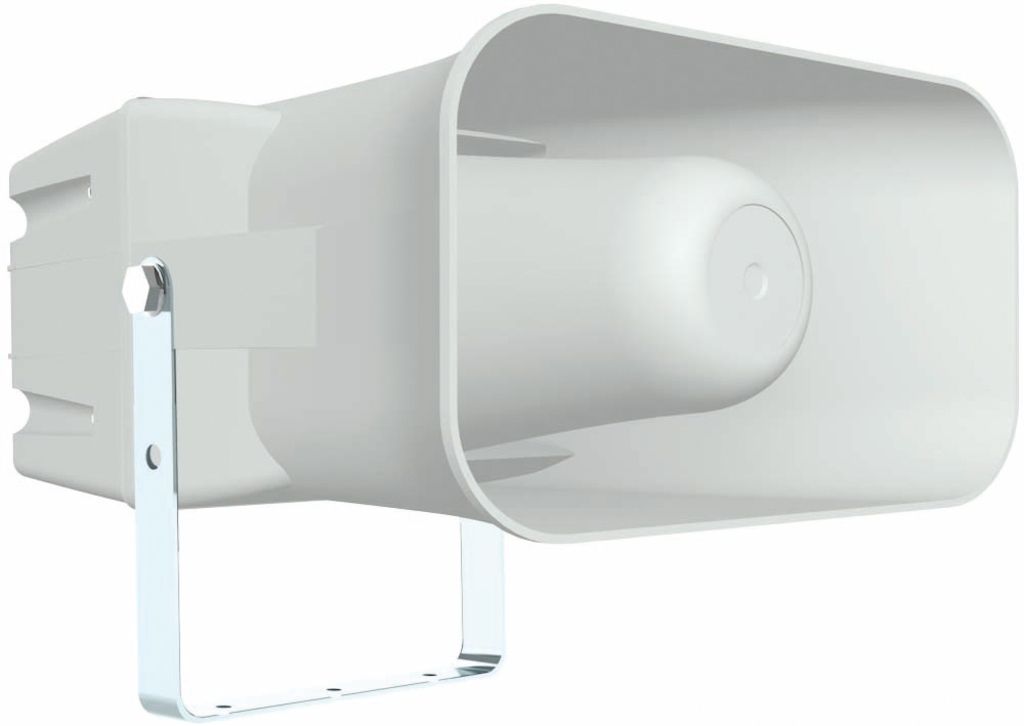

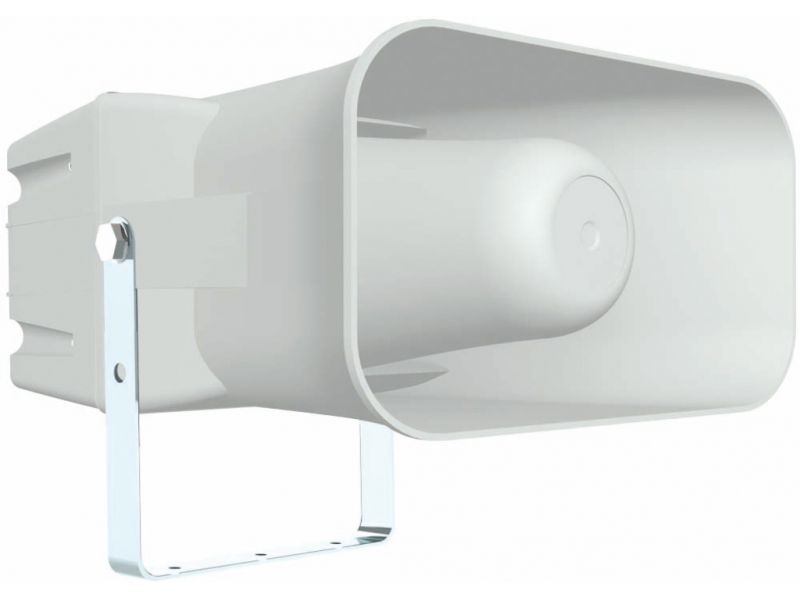

TR-15-T
Weatherproof horn speaker
- 100 V transmission technology
- 100 V transformer with 15/7.5/3.75 W power taps
- Integrated high-pass filter for sound and stability optimisation
- Suitable for use in road tunnels and poorly ventilated car parks
- Resistant to exhaust gases (diesel, petrol), de-icing salts (NaCl, CaCl), alkaline water (concrete/corrosion), road dust and vibration from traffic
- IP66 certified
- Light grey ABS housing (self-extinguishing, complies with UL94V0 standard)
- Cable feed via PG cable gland
- Additional drain hole in the pressure chamber housing
- Including mounting bracket made of stainless steel V4A 1.4571
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 15 W |
| Power rating (RMS) | 15/7.5/3.75 W |
| Frequency range | 350-10,000 Hz |
| Number of speakers | 1 |
| SPL | 110 dB/W/m |
| Max. rated SPL | 120 dB |
| Radiation angle/beam angle | H110°/V55° |
| Radiation angle, horizontal | 110° |
| Radiation angle, vertical | 55° |
| Housing material | ABS |
| Colour | light grey, RAL 7035 |
| Mounting device | mounting bracket, stainless steel |
| Protection class | IP66 |
| Admiss. ambient temp. | -40 °C to + 90 °C |
| Dimensions | 180 x 120 x 230 mm |
| Width | 180 mm |
| Height | 120 mm |
| Depth | 230 mm |
| Weight | 2.2 kg |
| Inputs | M20 cable gland |
| Other features | weatherproof |
| Packaging dimensions (W x H x L) | 0.18 x 0.18 x 0.267 m |
| Gross weight | 2.1 kg |
| Net weight | 2 kg |
