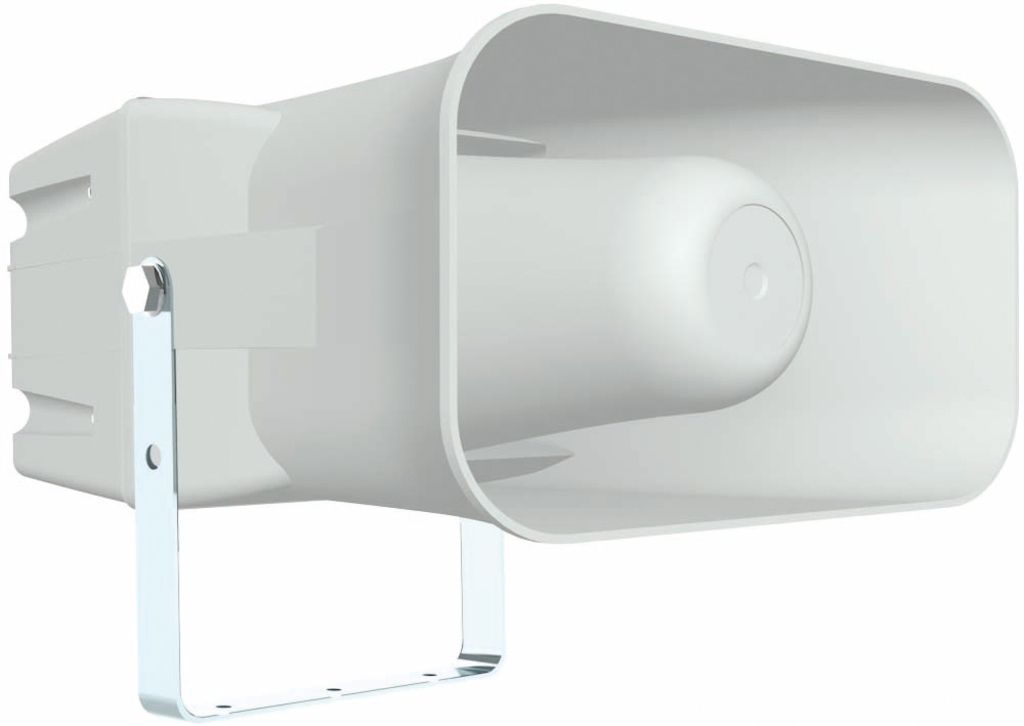

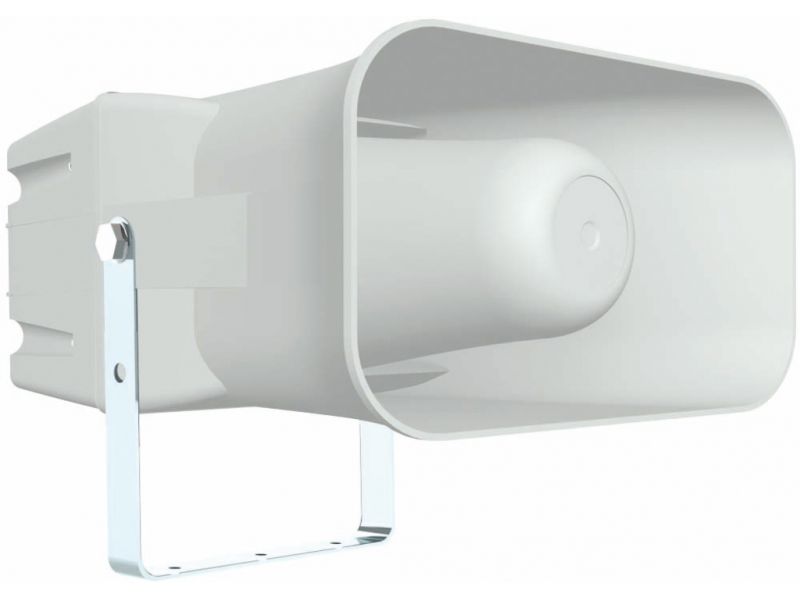

TR-25-EN
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 25 W |
| Power rating (RMS) | 25/12.5/6.25 W |
| Frequency range | 350-10,000 Hz |
| Number of speakers | 1 |
| SPL | 110 dB (1 W/1 m) 86 dB (EN, 1 W/4 m) |
| Max. rated SPL | 122 dB (1 m) 102.3 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H180°/V180° (1 kHz) H79°/V119° (2 kHz) H30°/V44° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz) 180° (1 kHz) 79° (2 kHz) 30° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz) 180° (1 kHz) 119° (2 kHz) 44° (4 kHz) |
| Features | EN 54-24 certification |
| Housing material | ABS |
| Colour | light grey, RAL 7035 |
| Mounting device | mounting bracket |
| Protection class | IP66 |
| Admiss. ambient temp. | -40 °C to +80 °C |
| Dimensions | 180 x 120 x 230 mm |
| Width | 180 mm |
| Height | 120 mm |
| Depth | 230 mm |
| Weight | 2.1 kg |
| Inputs | M20 cable gland |
| Other features | weatherproof |
| Packaging dimensions (W x H x L) | 0.18 x 0.18 x 0.267 m |
| Gross weight | 2.2 kg |
| Net weight | 2.1 kg |
