TR-3-4
Kod EAN: 4007754430097
Compact weatherproof horn speaker, 4 Ω, for speech and alarm applications Very high sound pressure (100 dB/1 W/1 m) IP69k certified, suitable for use in trains, fire engines and call stations Light grey PC/ABS housing (self-extinguishing, complies...
95,96 € brutto
(inkl. 23% DPH)
78,02 € netto

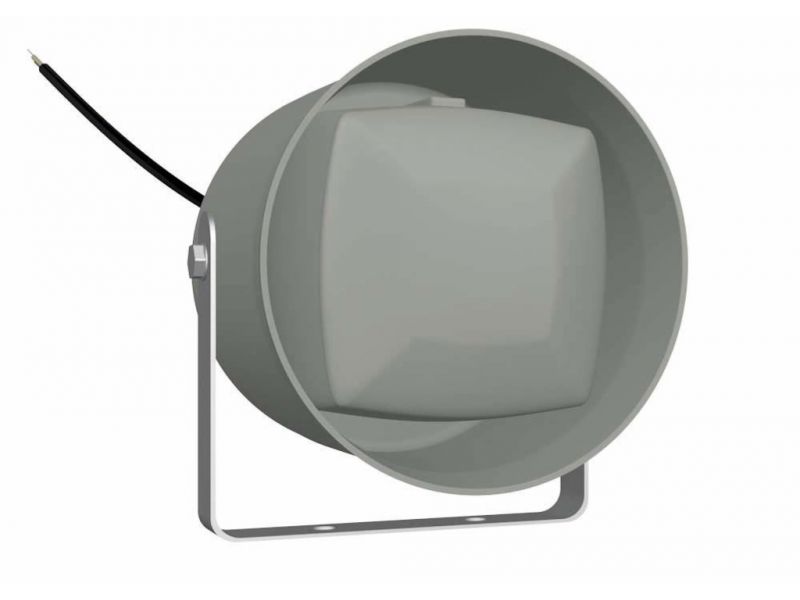

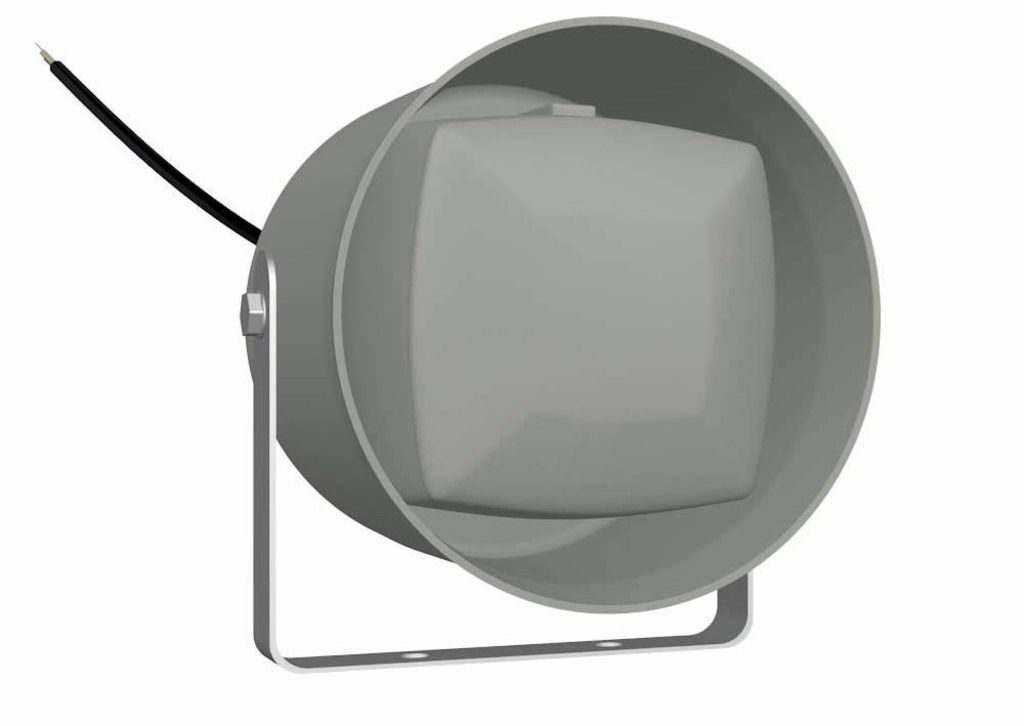

TR-3-4
Compact weatherproof horn speaker, 4 Ω,
for speech and alarm applications
- Very high sound pressure (100 dB/1 W/1 m)
- IP69k certified, suitable for use in trains, fire engines and call stations
- Light grey PC/ABS housing (self-extinguishing, complies with UL94V0 standard)
- Connection via 2-core cable (length 0.6 m)
- Mounting bracket included
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | cable |
| Power rating (RMS) | 10 W |
| Impedance | 4 Ω |
| Frequency range | 250-20,000 Hz |
| Number of speakers | 1 |
| SPL | 100 dB/W/m |
| Max. rated SPL | 109 dB |
| Radiation angle/beam angle | 150° |
| Radiation angle, horizontal | 150° |
| Radiation angle, vertical | 150° |
| Housing material | PC/ABS |
| Colour | light grey, RAL 7035 |
| Mounting device | mounting bracket |
| Protection class | IP69K |
| Admiss. ambient temp. | -40 °C to +110 °C |
| Dimensions | Ø 97 mm x 102 mm |
| Width | Ø 97 mm |
| Height | Ø 97 mm |
| Depth | 102 mm |
| Weight | 0.5 kg |
| Inputs | cable connection |
| Other features | weatherproof |
| Packaging dimensions (W x H x L) | 0.14 x 0.14 x 0.1 m |
| Gross weight | 0.6 kg |
| Net weight | 0.5 kg |
