TR-30-T

Kod EAN: 4007754430127

Weatherproof horn speaker 100 V transmission technology 100 V transformer with power taps 30/15/7.5 W Integrated high-pass filter for sound and stability optimisation Suitable for use in road tunnels and poorly ventilated car parks Resistant to exhau...

víc

146,41 € brutto

(inkl. 23% DPH)
119,03 € netto

Staň se partnerem
Kup teď

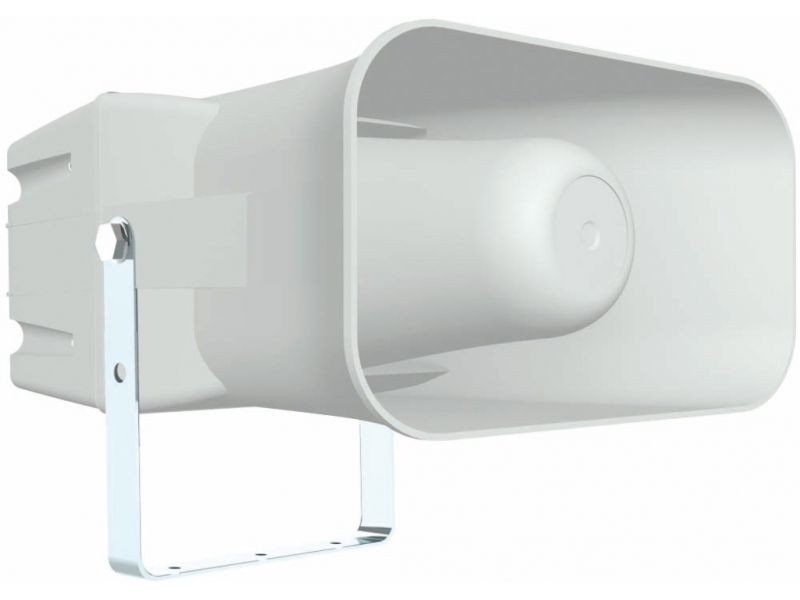

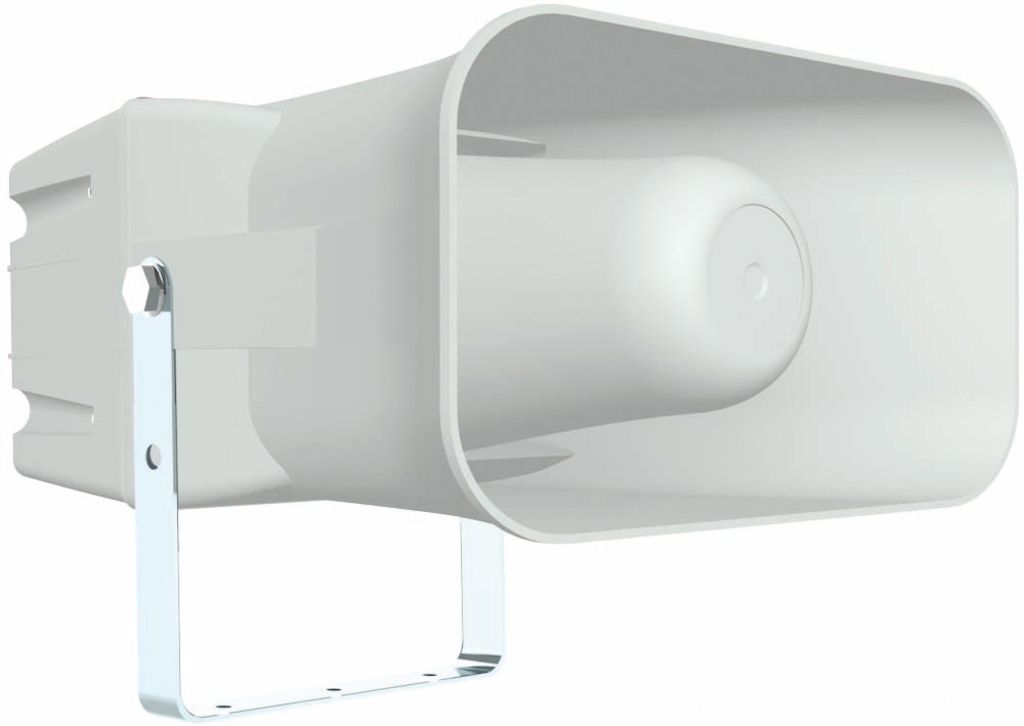

TR-30-T

Weatherproof horn speaker
  • 100 V transmission technology
  • 100 V transformer with power taps 30/15/7.5 W
  • Integrated high-pass filter for sound and stability optimisation
  • Suitable for use in road tunnels and poorly ventilated car parks
  • Resistant to exhaust gases (diesel, petrol), de-icing salts (NaCl, CaCl), alkaline water (concrete/corrosion), road dust and vibration from traffic
  • IP66 certified
  • Light grey ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Cable feed via PG cable gland
  • Additional drain hole in the pressure chamber housing
  • Including mounting bracket made of stainless steel V4A 1.4571
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametry

Active/passive passive
Transmission technology 100 V
Total power rating 30 W
Power rating (RMS) 30/15/7.5 W
Frequency range 350-10,000 Hz
Number of speakers 1
SPL 110 dB/W/m
Max. rated SPL 123 dB
Radiation angle/beam angle H110°/V55°
Radiation angle, horizontal 110°
Radiation angle, vertical 55°
Housing material ABS
Colour light grey, RAL 7035
Mounting device mounting bracket, stainless steel
Protection class IP66
Admiss. ambient temp. -40 °C to + 90 °C
Dimensions 180 x 120 x 230 mm
Width 180 mm
Height 120 mm
Depth 230 mm
Weight 2.3 kg
Inputs M20 cable gland
Other features weatherproof
Packaging dimensions (W x H x L) 0.18 x 0.18 x 0.267 m
Gross weight 2.1 kg
Net weight 2 kg

Na stáhnutí

Produktová karta TR-30-T
