UDA-49AP
Kod EAN: 4007754429350
Active/passive UHF directional antenna Improved reception and a larger transmission range of 470-960 MHz Rejects third-party RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility Reliable operation also for...
320,00 € brutto
(inkl. 23% DPH)
260,16 € netto

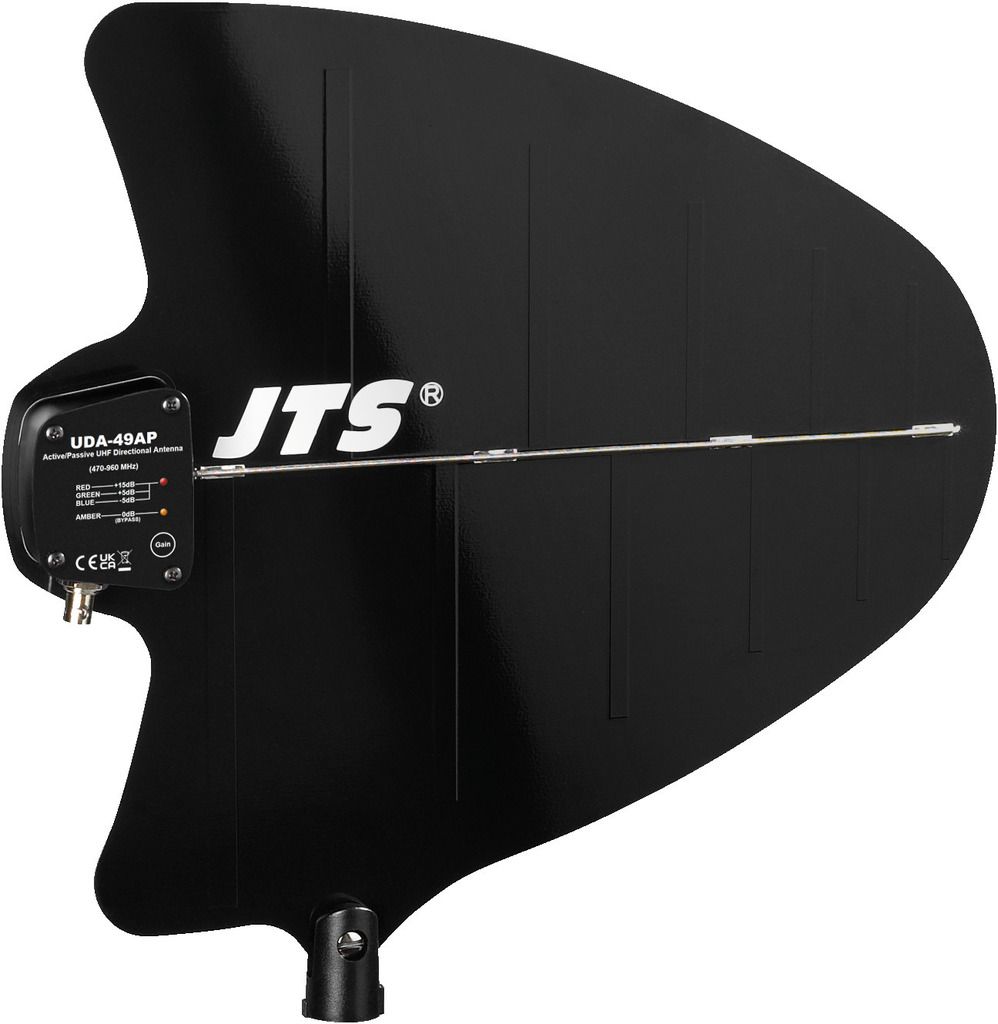

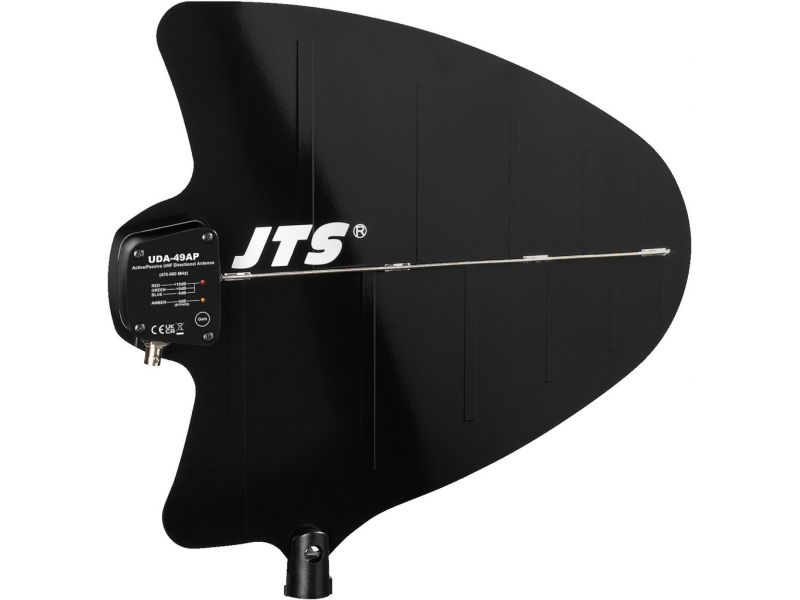

UDA-49AP
Active/passive UHF directional antenna
- Improved reception and a larger transmission range of 470-960 MHz
- Rejects third-party RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility
- Reliable operation also for short-term outdoor applications
- Switchable gain (-5 dB/0 dB/+5 dB /+15 dB) to avoid power loss
- Remote power supply: DC 12 V/65 mA
- BNC connection
- Power supply via active antenna splitter UA-960
- Passive operation if external operating voltage is not applied
- Suitable for wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems
- Ideally suited for mobile applications, can be mounted onto any microphone stand with a thread of 9 mm (⅜") or 16 mm (⅝")
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Frequency range | 470-960 MHz |
| Aperture angle | 100° |
| Active/passive | active/passive |
| Antenna gain | ≥ 10 dB |
| Power supply | DC 12 V/65 mA, remote power supply (external power supply) |
| Impedance level | 50 Ω |
| Support | 9 mm (⅜") or 16 mm (⅝") |
| Dimensions | 360 x 350 x 36.6 mm (1.7 mm sheet thickness) |
| Weight | 400 g |
| Connection | BNC jack |
