WDW-2000-A/B-EN-10
Kod EAN: 4007754429596
PA A/B wall and ceiling speaker with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4. 100 V transmission technology via audio transformer with 2 x 3 power taps 2 separate fu...
95,95 € brutto
(inkl. 23% DPH)
78,01 € netto

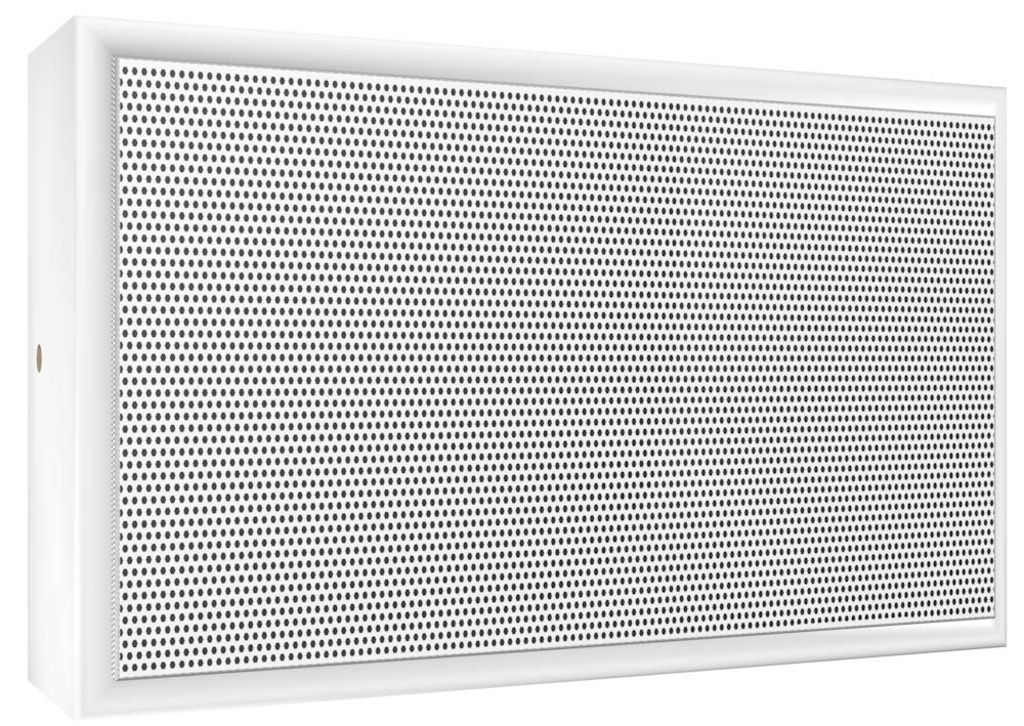

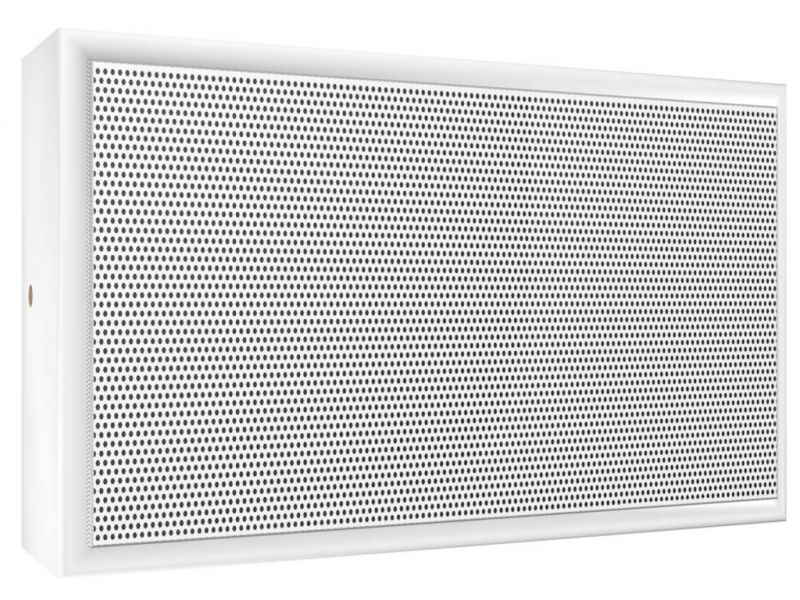

WDW-2000-A/B-EN-10
PA A/B wall and ceiling speaker
with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
- 100 V transmission technology via audio transformer with 2 x 3 power taps
- 2 separate full-range speakers (10 cm), each with its own 10/5/2.5 W transformer
- Moisture-proof speaker cone
- Wooden housing with metal protective grille
- Easy wall mounting using the supplied aluminium bracket and installation material
- Ball-proof in accordance with DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 2 x 10 W |
| Power rating (RMS) | 2 x 10/5/2.5 W |
| Frequency range | 80-20,000 Hz |
| Number of speakers | 2 |
| Speaker size | 10 cm (4") |
| SPL | 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m) |
| Max. rated SPL | 2 x 102 dB (1 m) 87 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H85°/V85° (1 kHz) H154°/V148° (2 kHz) H82°/V88° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz) 83° (1 kHz) 154° (2 kHz) 82° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz) 85° (1 kHz) 148° (2 kHz) 88° (4 kHz) |
| Features | EN-54-24 certification |
| Housing material | wood |
| Colour | white, RAL 9010 |
| Mounting device | aluminium bracket |
| Protected against ball rebound | yes |
| Dimensions | 265 x 165 x 88 mm |
| Width | 265 mm |
| Height | 165 mm |
| Depth | 88 mm |
| Weight | 2.1 kg |
| Inputs | WAGO clamps |
| Packaging dimensions (W x H x L) | 0.268 x 0.168 x 0.92 m |
| Gross weight | 2.2 kg |
| Net weight | 2.1 kg |
